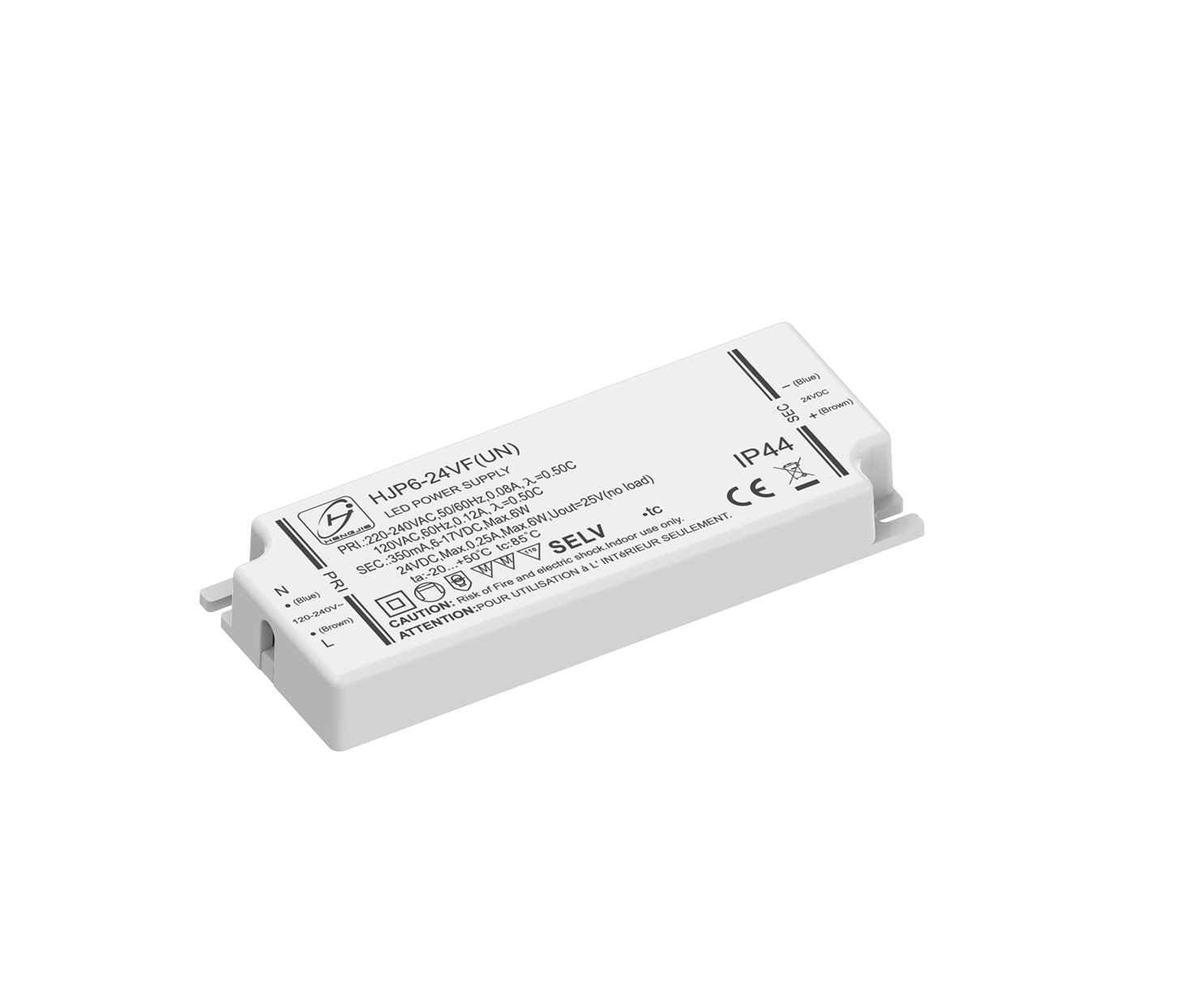

Independent power supply for constant voltage LED lamp.
With output and input flying leads.
Class II protection against electric shock for direct or indirect contact.
super thin size design.
IP44 water-proof design.
Fast start-up time≤0.5S.
class2 output, SELV output.
Protections:
-against open and short circuits.
-against overheating.
-against overloads.
3-years warranty.
| Item code | Rated input | PF | DF | Output | Output power range | Tolerance | Efficiency | ta | tc | size | IP | Approval |
| HJP6-12VF(UN) | AC120-240V | 0.50C | 0.85 | 12VDC | 0-6W | +/-5% | 78.0% | -20...+45℃ | 75℃ | 100x44x10.8 | 44 | CE |
| HJP6-24VF(UN) | AC120-240V | 0.50C | 0.85 | 24VDC | 0-6W | +/-5% | 80.5% | -20...+45℃ | 75℃ | 100x44x10.8 | 44 | CE |
