US Ultra High Power Density Series

Feature
Product Description:
1 Independent power supply for constant voltage LED lamp.
2 With output and input flying leads.
3 Metal case with Class II protection against electric shock for direct or indirect content.
4 Ultra high power density design.
5 Smaller size design.
6 Damp locations use.
7 Fast start-up time≤0.5s.
8 Class 2 output.
9 Protections:
-against open and short circuits
-against overheating
-against overloads
10 5-year warranty.
  • Application scenario

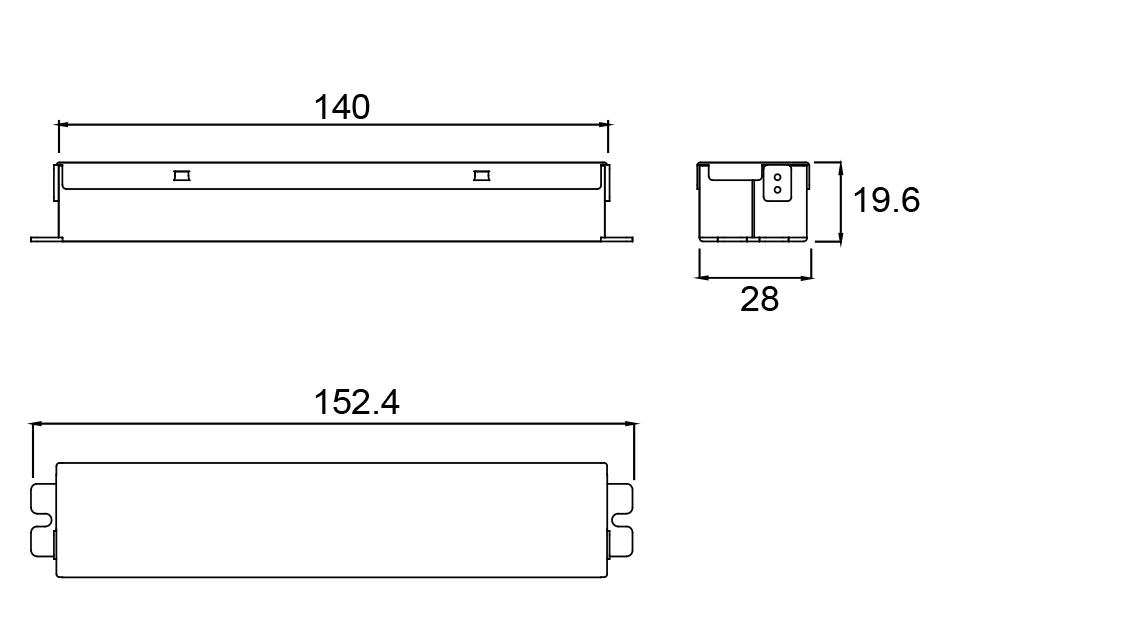

  • Size
  • Technic Data
  • Installation
  • Accessories
Iteam code Rated input PF DF No load power consumption Output Output power range Tolerance Efficiency ta tc Size(L*M*H) Approval
HJA90-24VM(US) AC120/277V 0.95C 0.95 ≤0.8W 24VDC 0-96W
+/-5% 90.0% -20...+45℃ 90℃ 140X28X19.6 -
