Plug-in Power Supply

Feature

—Independent constant voltage LED power supply

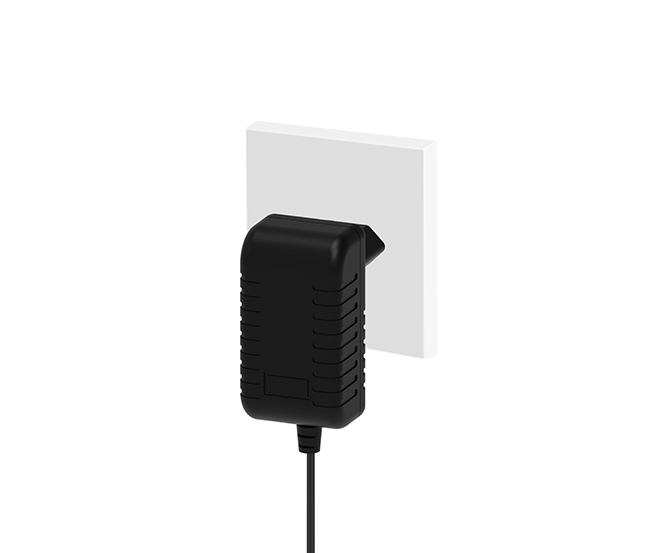

—Plug-in input and deconcentrator output

—Full protection functions with automatic recovery feature

—Fast start-up time ≤0.5s

—Protection class II, SELV output

—Eiciency:81%

—Compliance to ERP directive: COMMISSION REGULATION (EU) 2019/2020

The Product (PDF)

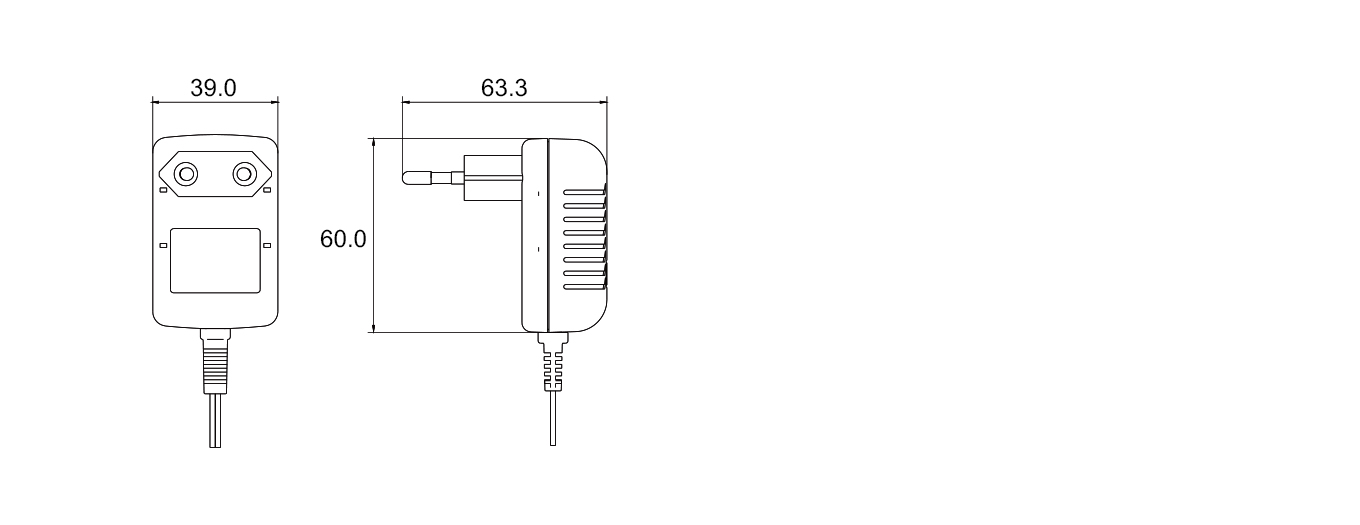

ITEM CODE	Rated Input	PF	Output voltage （current）	Output voltage（current）range	CV/CC	Ta	Tc	Size	Approval
HJA8-12VGW	220-240Vac	0.50C	12V (for CV) 3-11V (for CC)	0-0.67A (for CV) 0.63-0.7A (for CC)	CVCC	-20…+45℃	85℃	60×39×63	TUV GS

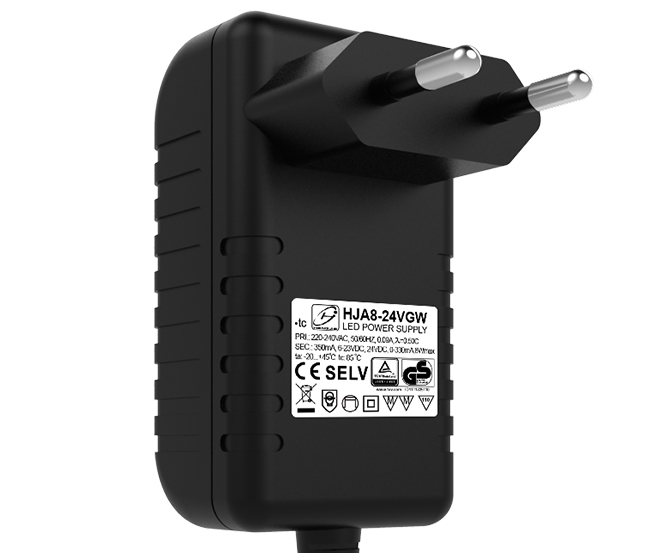

HJA8-24VGW	220-240Vac	0.50C	24V (for CV) 6-23V (for CC)	0-0.33A (for CV) 0.32-0.37A (for CC)	CVCC	-20…+45℃	85℃	60×39×63	TUV GS

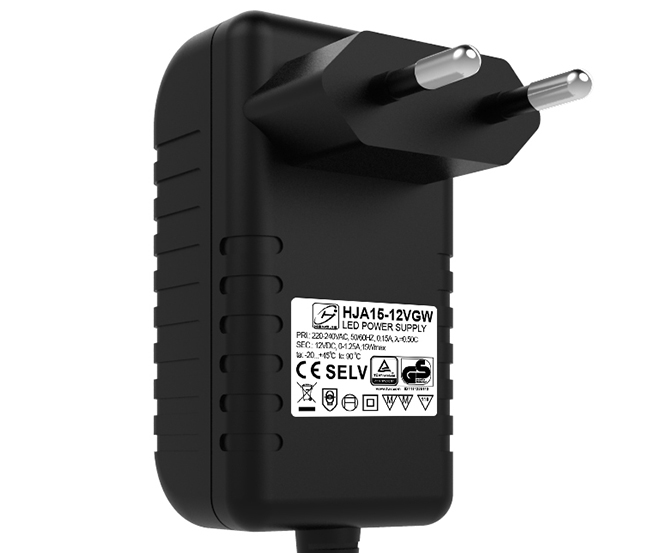

HJA15-12VGW	220-240Vac	0.50C	12V	0-1.25A	CV	-20…+50℃	90℃	60×39×63	TUV GS
HJA15-24VGW	220-240Vac	0.50C	24V (for CV) 8-22V (for CC)	0-0.625A (for CV) 0.63-0.7A (for CC)	CVCC	-20…+50℃	90℃	60×39×63	TUV GS
