Item code |
Rated input |
PF |
DF |
No load power consumption |
Output |
Output power range |
Tolerance |
Efficiency |
Ta |
Tc |
Size (L×W×H) |
IP |
Approval |
|
HJP6-12VF |
AC220-240V |
0.50C |
0.85 |
≤0.3W |
12VDC |
0-6W |
+/-5% |
78.00% |
-20…+50°C |
75°C |
112×45×15 |
44 |
CE |
|
HJP6-24VF |
AC220-240V |
0.50C |
0.85 |
≤0.3W |
24VDC |
0-6W |
+/-5% |
80.50% |
-20…+50°C |
75°C |
112×45×15 |
44 |
CE |
|
HJP15-12VF |
AC220-240V |
0.50C |
0.85 |
≤0.3W |
12VDC |
0-15W |
+/-5% |
82.50% |
-20…+45°C |
90°C |
134.5×51×17 |
44 |
CE |
|
HJP15-24VF |
AC220-240V |
0.50C |
0.85 |
≤0.3W |
24VDC |
0-15W |
+/-5% |
85.50% |
-20…+45°C |
85℃ |
134.5×51×17 |
44 |
CE |
|
HJP30-12VF |
AC220-240V |
0.95C |
0.95 |
≤0.5W |
12VDC |
0-30W |
+/-5% |
83.50% |
-20…+45°C |
85℃ |
172.5×51×20 |
44 |
CE |
|

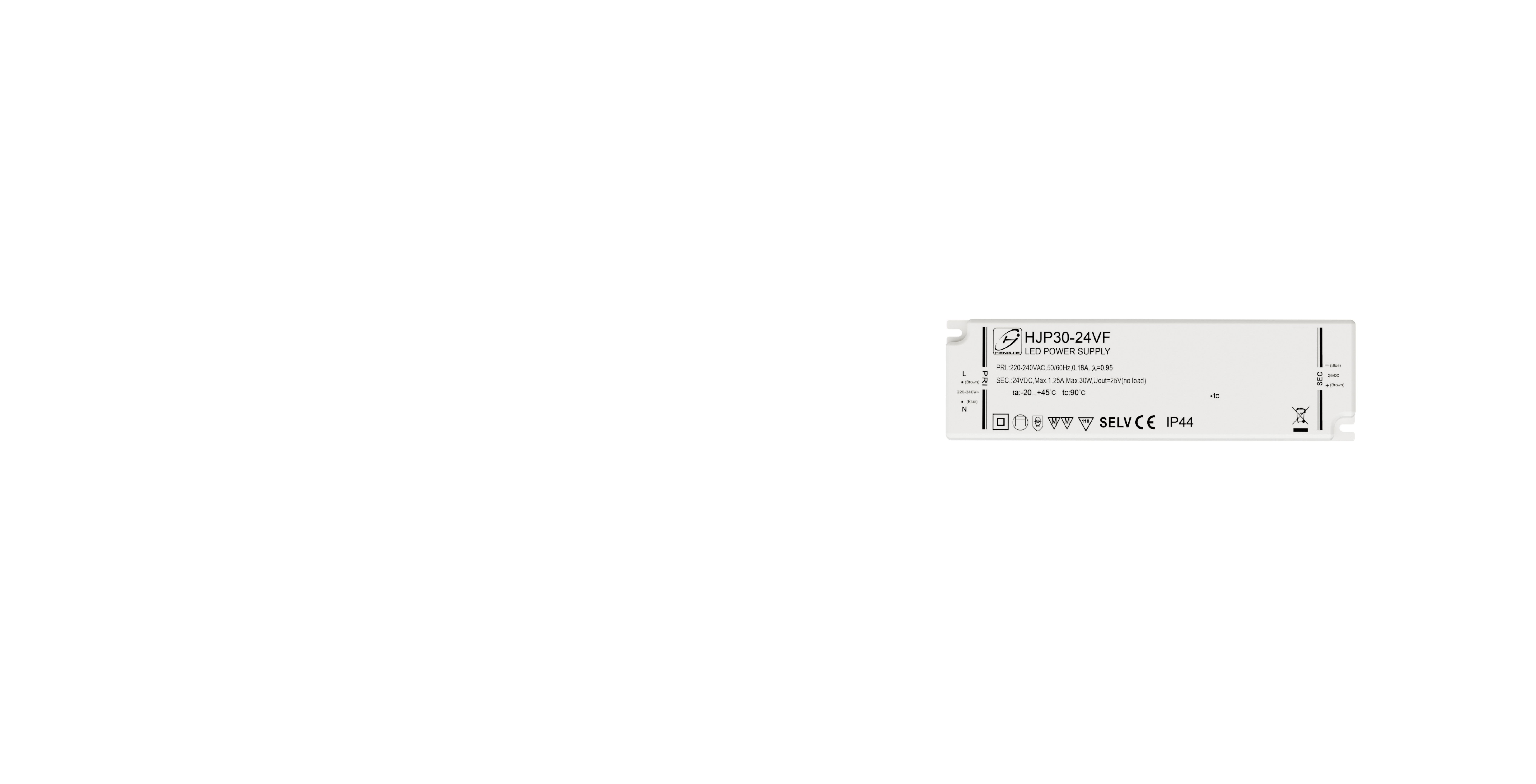

HJP30-24VF |
AC220-240V |
0.95C |
0.95 |
≤0.5W |
24VDC |
0-30W |
+/-5% |
84.50% |
-20…+45°C |
85℃ |
172.5×51×20 |
44 |
CE |
