Item code |
Rated input |
PF |
DF |
No load power consumption |
Output |
Output power range |
Tolerance |
Efficiency |
Ta |
Tc |
Size (L×W×H) |
Approval |
|
HJA15-12VF-2 |
AC220-240V |
0.50C |
0.8 |
≤0.3W |
12VDC |
0-15W |
+/-5% |
82.60% |
-20…+45°C |
90℃ |
124×49×13 |
ENEC TUV |
|
HJA15-24VF-2 |
AC220-240V |
0.50C |
0.8 |
≤0.3W |
24VDC |
0-15W |
+/-5% |
85.50% |
-20…+45°C |
85℃ |
124×49×13 |
ENEC TUV |
|
HJA20-12VF-1 |
AC220-240V |
0.55C |
0.85 |
≤0.3W |
12VDC |
0-20W |
+/-5% |
84.10% |
-20…+45°C |
85℃ |
128×49×15 |
ENEC TUV |
|
HJA20-24VF-1 |
AC220-240V |
0.55C |
0.85 |
≤0.3W |
24VDC |
0-20W |
+/-5% |
87.60% |
-20…+45°C |
85℃ |
128×49×15 |
ENEC TUV |
|
HJA30-12VF-1 |
AC220-240V |
0.95 |
0.95 |
≤0.5W |
12VDC |
0-30W |
+/-5% |
83.50% |
-20…+45°C |
85℃ |
161×51×17.5 |
ENEC TUV |
|
HJA30-24VF-1 |
AC220-240V |
0.95 |
0.95 |
≤0.5W |
24VDC |
0-30W |
+/-5% |
84.50% |
-20…+45°C |
85℃ |
161×51×17.5 |
ENEC TUV |
|

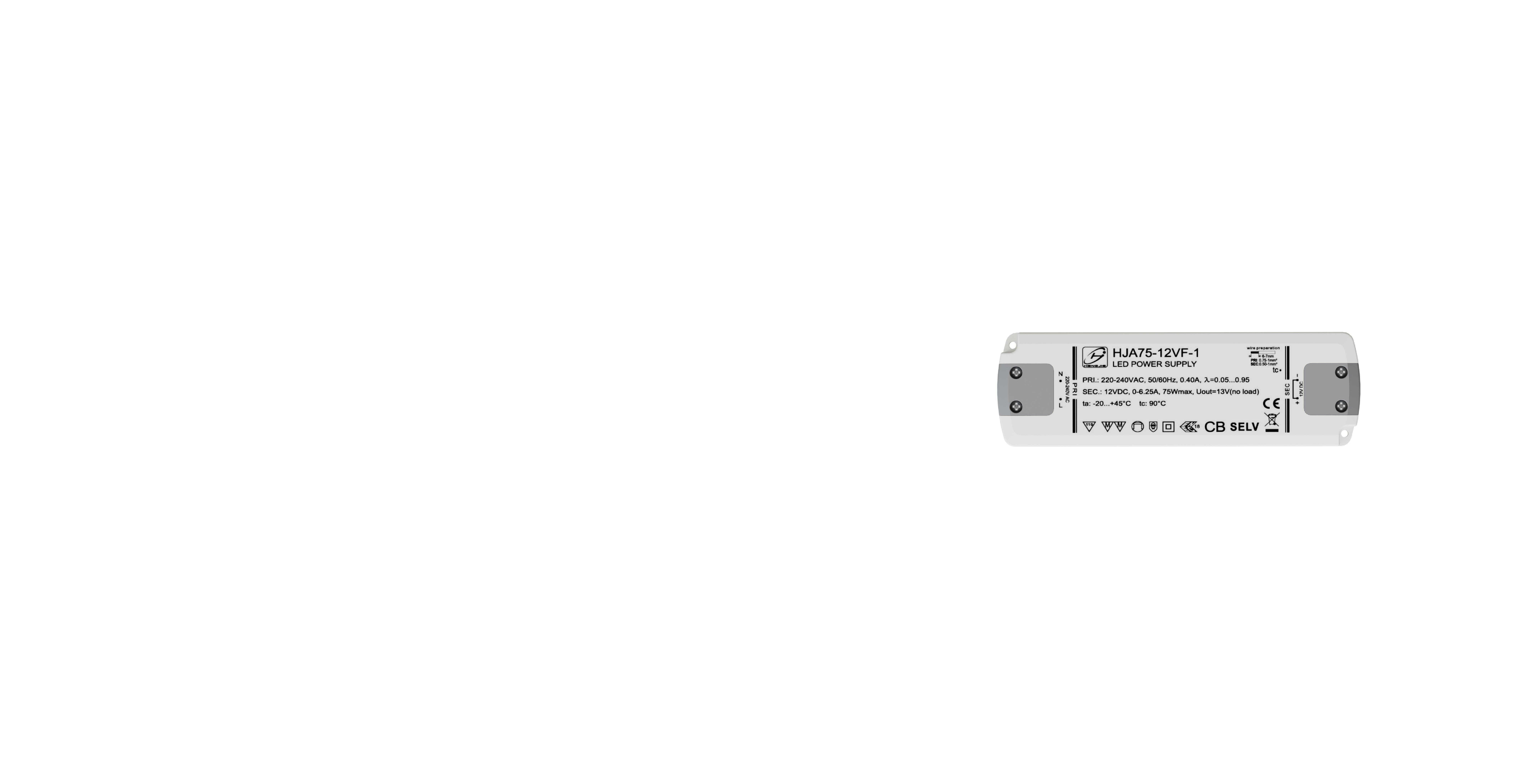

HJA75-12VF-1 |
AC220-240V |
0.95 |
0.95 |
≤0.5W |
12VDC |
0-75W |
+/-5% |
91.00% |
-20…+45°C |
85℃ |
166×56.7×22 |
ENEC TUV |
|
HJA75-24VF-1 |
AC220-240V |
0.95 |
0.95 |
≤0.5W |
24VDC |
0-75W |
+/-5% |
92.00% |
-20…+45°C |
85℃ |
166×56.7×22 |
ENEC TUV |
|
HJA96-12VF |
AC220-240V |
0.95 |
0.95 |
≤0.5W |
12VDC |
0-96W |
+/-5% |
92.00% |
-20…+40°C |
85℃ |
166×56.7×22 |
CE |
|
HJA100-24VF |
AC220-240V |
0.95 |
0.95 |
≤0.5W |
24VDC |
0-100W |
+/-5% |
93.00% |
-20…+45°C |
90℃ |
166×56.7×22 |
CE |
