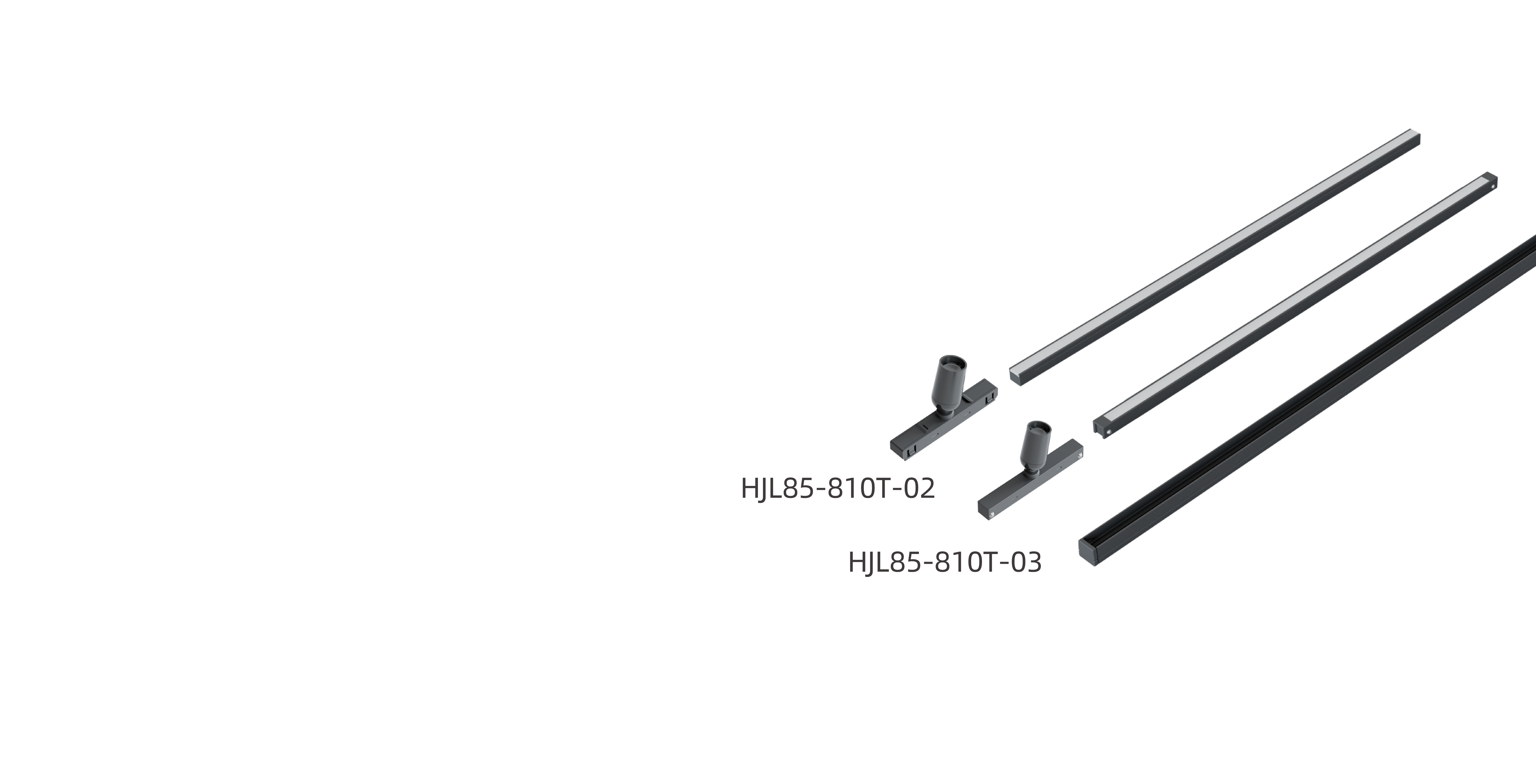

MINI SLIDE Ⅱ/Ⅲ

• Available both spot and linear light in same track. • Optical lens design. Uniform light,Super small size for showcase. • MINI SLIDE II (HJL85-810T-02) -Strip Light: Magnetic mount. Spot light: Mechanical snap-fit mount. • MINI SLIDE III (HJL85-810T-03) - Ball-spring fixation for both strip and spot lights. • 4-points contact power system for secure installation and reliable power. • Lifetime 50,000hr.

0104

Features

Available both spot and linear light in same track.
Optical lens design. Uniform light,Super small size for showcase.

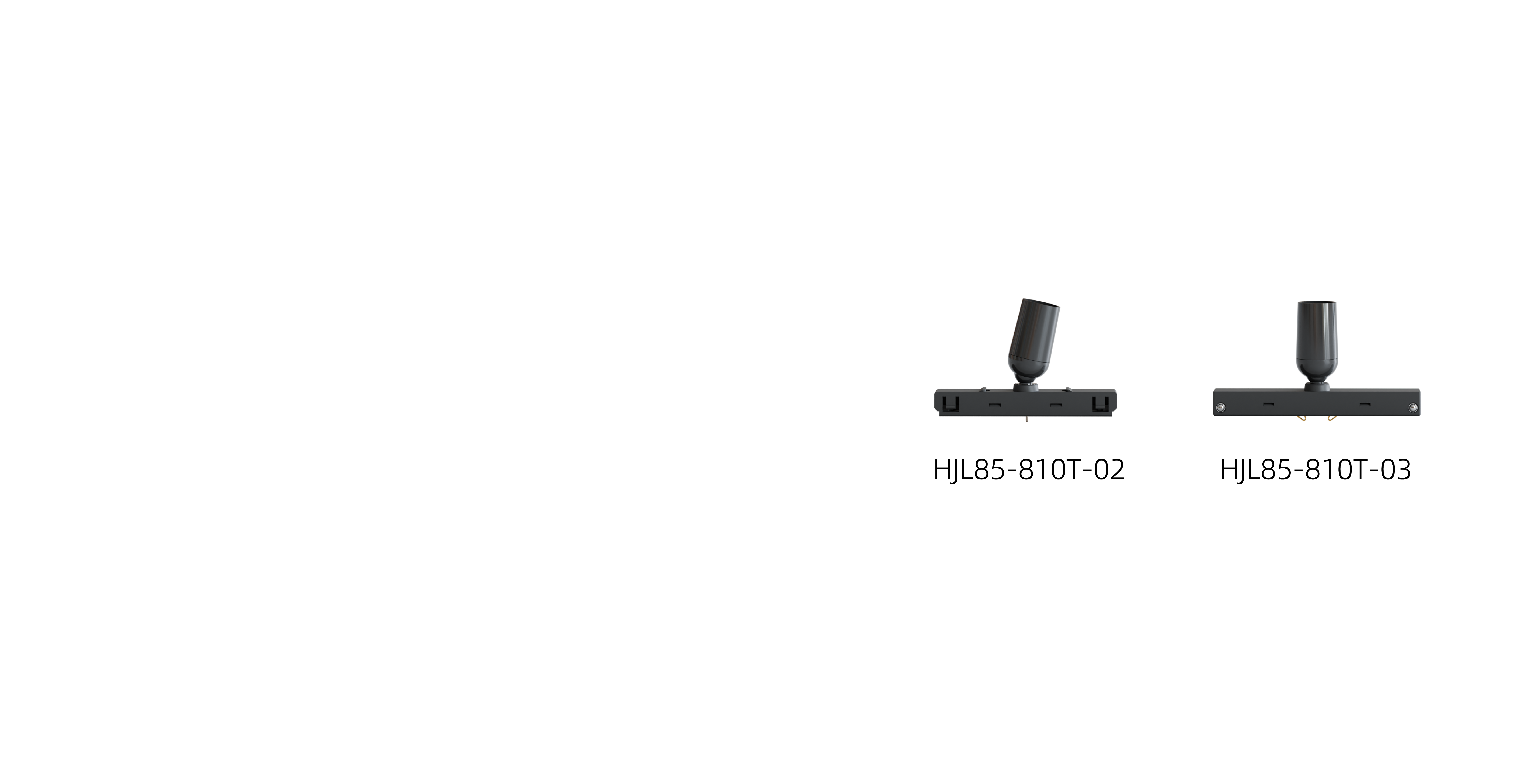

MINI SLIDE II (HJL85-810T-02) -Strip Light: Magnetic mount. Spot light: Mechanical snap-fit mount.
MINI SLIDE III (HJL85-810T-03) - Ball-spring fixation for both strip and spot lights.
4-points contact power system for secure installation and reliable power.
Lifetime 50,000hr.

Specifications

Item

Rated Input

CCT

Power

Efficiency

RA

IP

Beam angle

Length

HJL85-810T-02

HJL85-810T-03

12/24V DC

3000K/4000K

1.0 W

95 lm/W(@4000K)

>85

20

22°

MAX.1500mm

12/24V DC

2700-6500K

3.5 W

80 lm/W(@6500K)

>90

20

110°

MAX.300mm

* Other lengths available

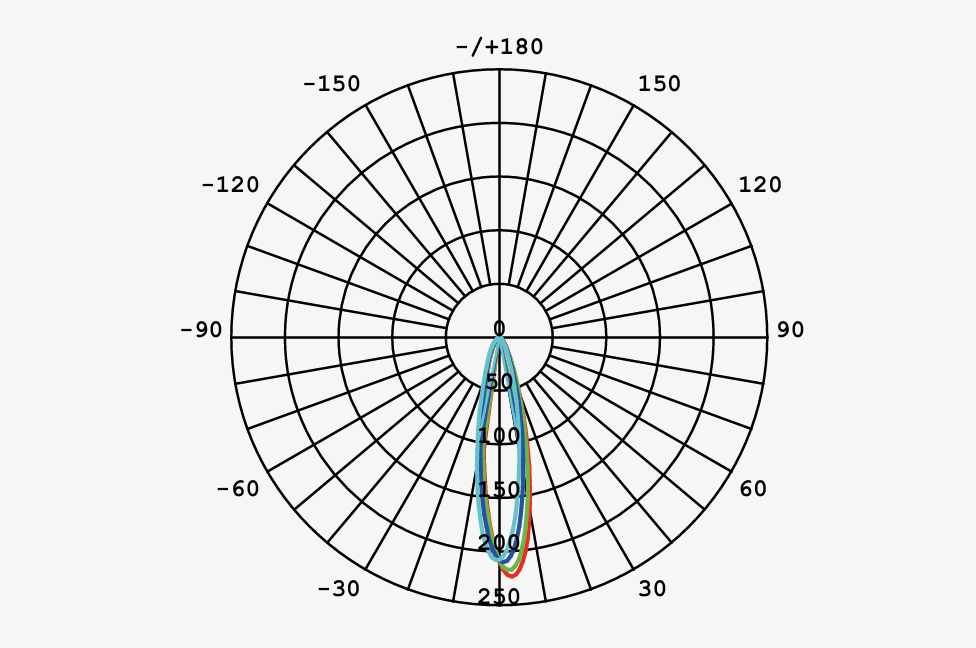

Luminous Intensity

Luminous Intensity

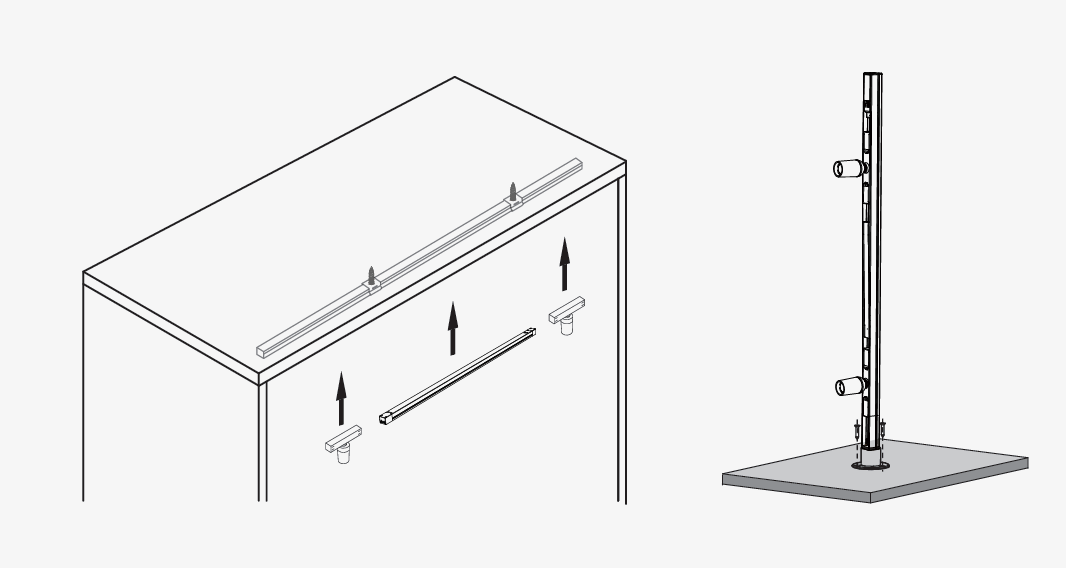

Installatiion

Dimensions

Luminous Intensity

Downloads

Application Scenarios

Wardrobe Lighting

Wardrobe Lighting

From the very first beam of light upon opening the cabinet door, we redefine your storage and dressing experience.

Wine Cabinet Lighting

Wine Cabinet Lighting

Cast the perfect light on your prized wine collection. Savoring wine is also savoring life.

Kitchen Lighting

Kitchen Lighting

Let every cooking moment in the kitchen be bathed in calm, efficient, and pleasant light.

Supermarket & Retail Shelf Lighting Solution

Supermarket & Retail Shelf Lighting Solution

Jewelry Display Lighting

Jewelry Display Lighting

Beauty Retai Lighting

Beauty Retai Lighting

Soft, accurate lighting that highlights textures and creates a premium storage environment.
