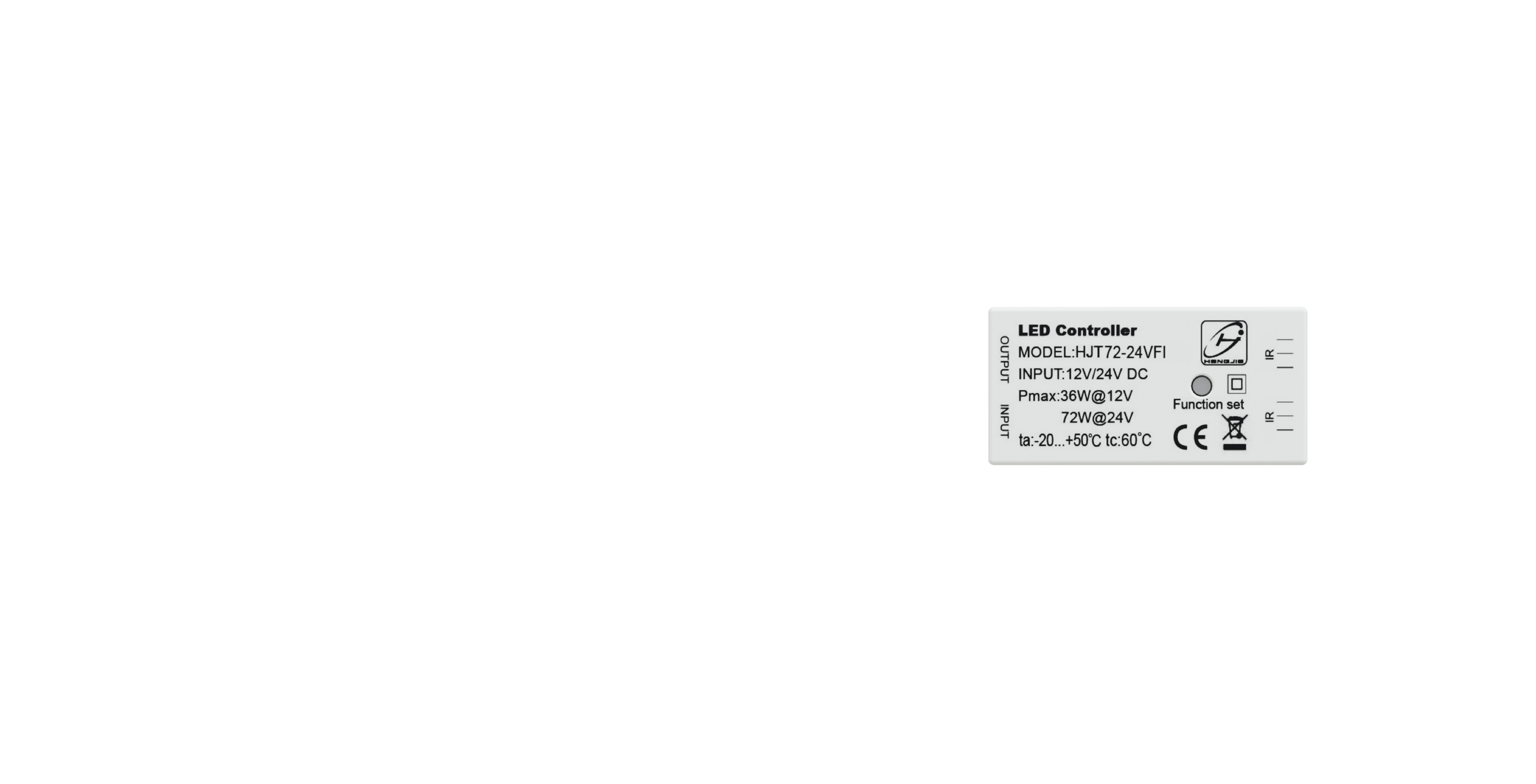

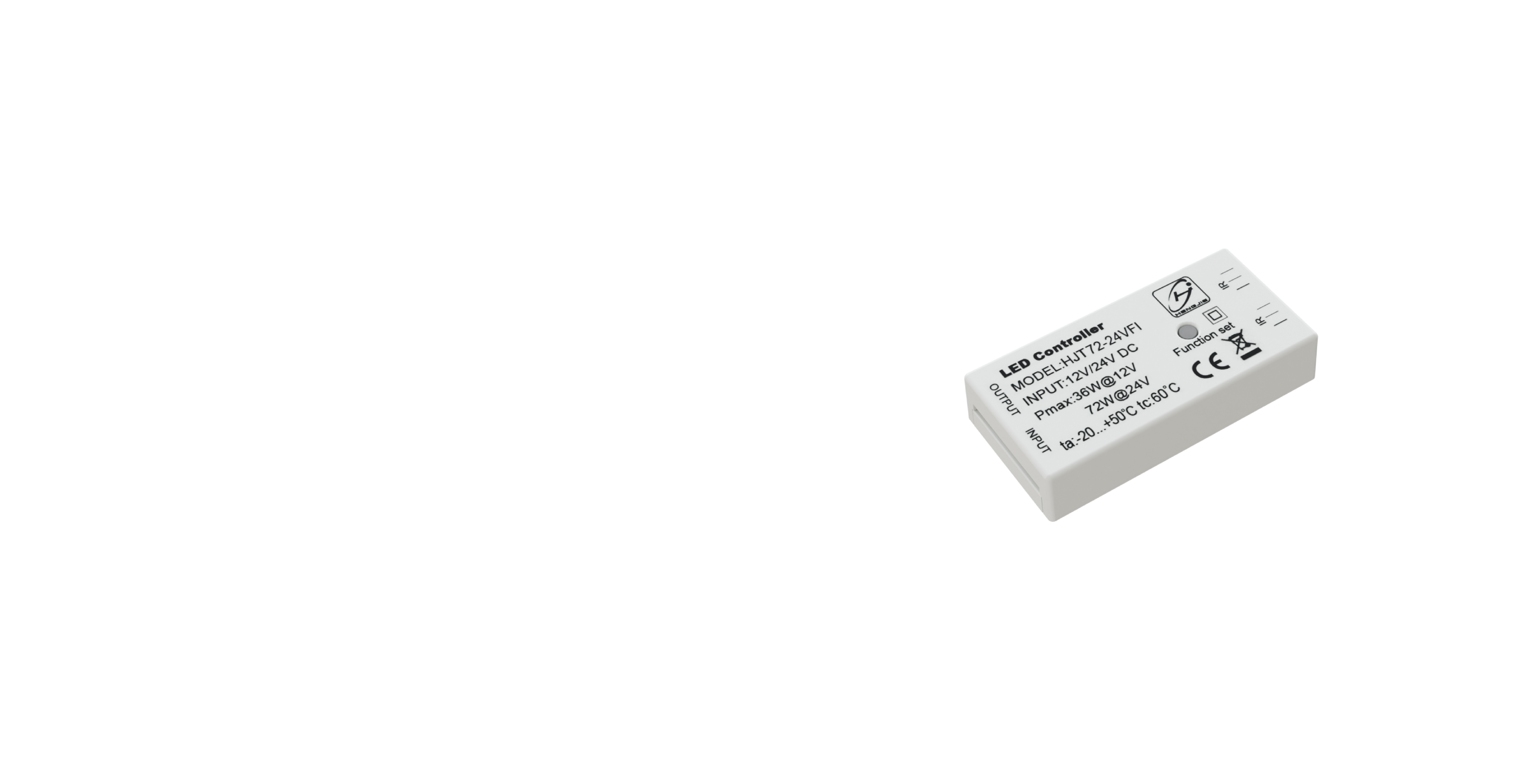

IR SENSOR CONTROLLER

• Wave control function:Wave hand first time, switch light on; wave hand second time, switch light off; wave hand third time, switch light on again (and so on...). • Dimming for CCT. • Optional Sensor. • Detection range: 4-12mm is recommended. • LED load power:12V:Max.60W 24V:Max.120W . • 5-year warranty.

0104

Features

Wave control function:Wave hand first time, switch light on; wave hand second time, switch light off; wave hand third time, switch light on again (and so on...). Dimming for CCT .
Detection range: 4-12mm is recommended.
LED load power:12V:Max.60W 24V:Max.120W .
5-year warranty.

Specifications

Item code	Rated input	Power	Rated Current	Angle	Detection Range(Depend on sensor)	Delay Time	Ta	Tc	Size (L×W×H)	Approval
HJT72-24VFI	12/24 VDC	36/72W	3A	-	4-12cm	-	-20…+50°C	60°C	66×30×12	CE
