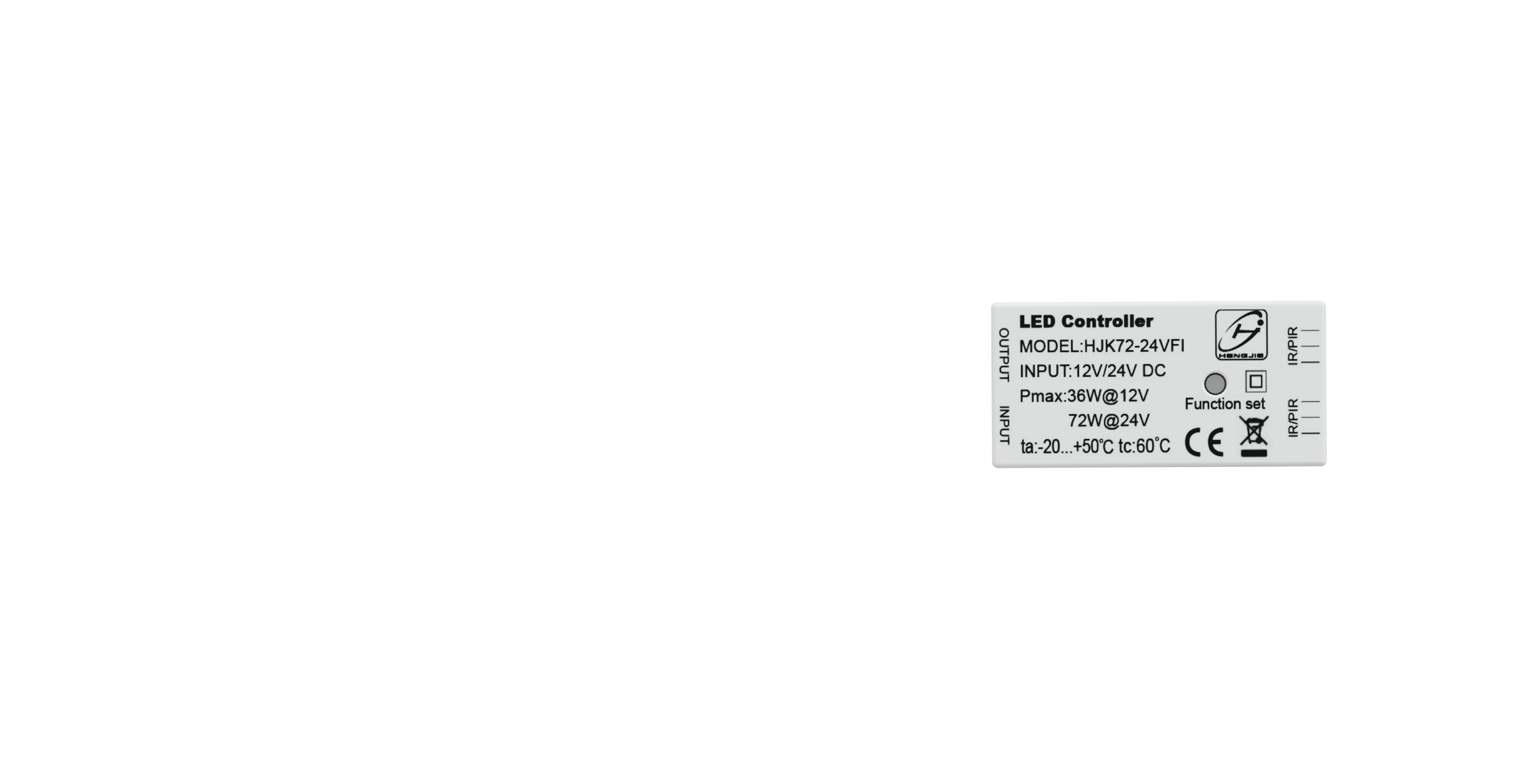

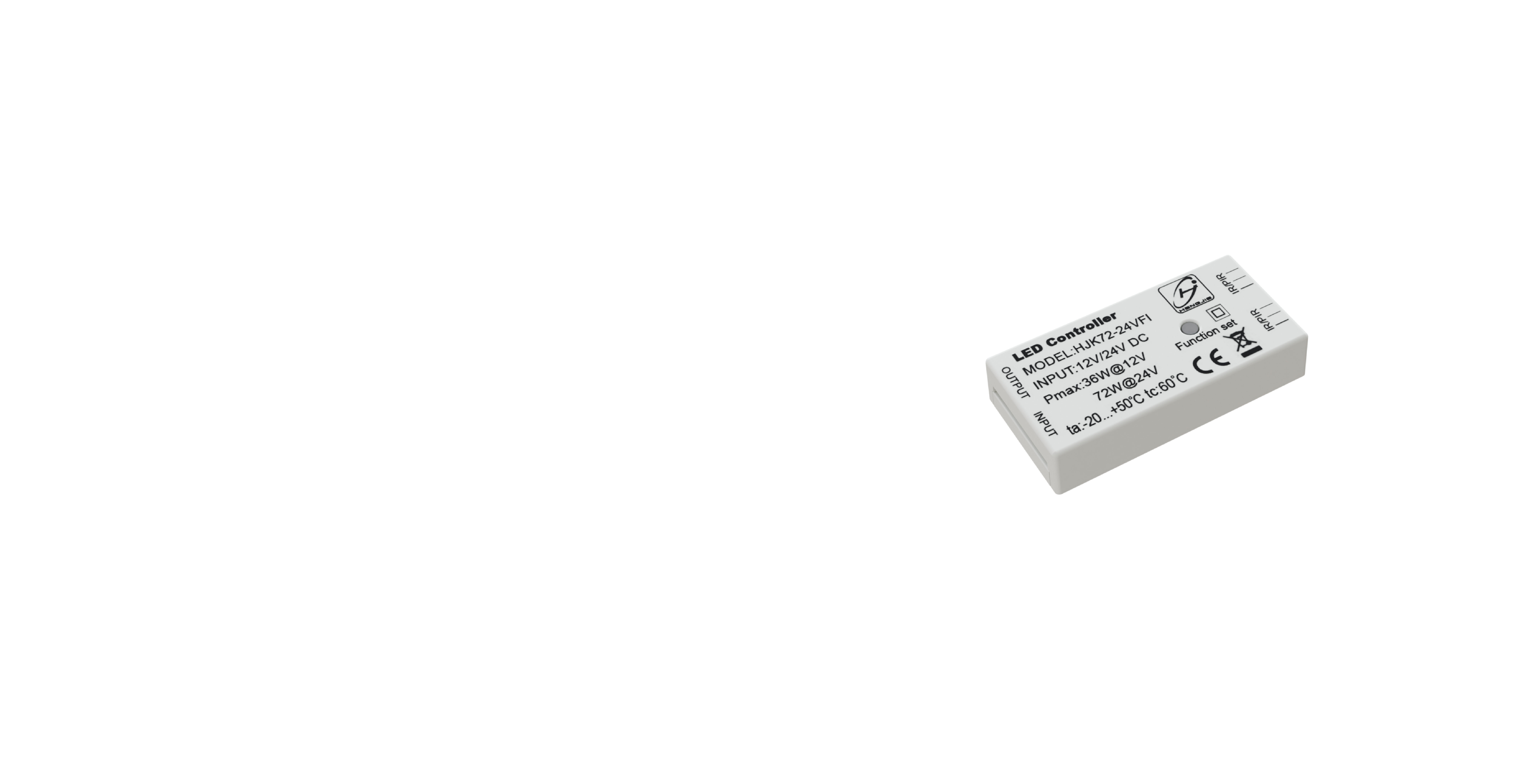

IR&PIR SENSOR CONTROLLER

• Patented technology to identify traditional IR and PIR sensor, support 1- 2 sensors work together. • Infrared detection:When open the door, light turn on; when close the door, light turn off. • Human-body detection:when people moving in the detection area,light turn on. After the set time, if there is no any motion detecting, light turn off. • Optional Sensor. • With 2 selectable function (change by push the function set button) :"Door switch function” and “Wave control function”. • Detection range: 4-12mm is recommended. • 5-year warranty.

0104

Features

With 2 selectable function (change by push the function set button) :"Door switch function” and “Wave control function”. Infrared detection:When open the door, light turn on; when close the door, light turn off. Human-body detection:when people moving in the detection area,light turn on. After the set time, if there is no any motion detecting, light turn off.
Patented technology to identify traditional IR and PIR sensor, support 1- 2 sensors work together.
Detection range: 4-12mm is recommended.
5-year warranty.

Specifications

Item code	Rated input	Power	Rated Current	Angle	Detection Range(Depend on sensor)	Delay Time	Ta	Tc	Size (L×W×H)	Approval
HJK72-24VFI	12/24 VDC	36/72W	3A	Max.100°	1-3m@PIR, 4-12cm@IR	-	-20…+50°C	60°C	66×30×12	CE
