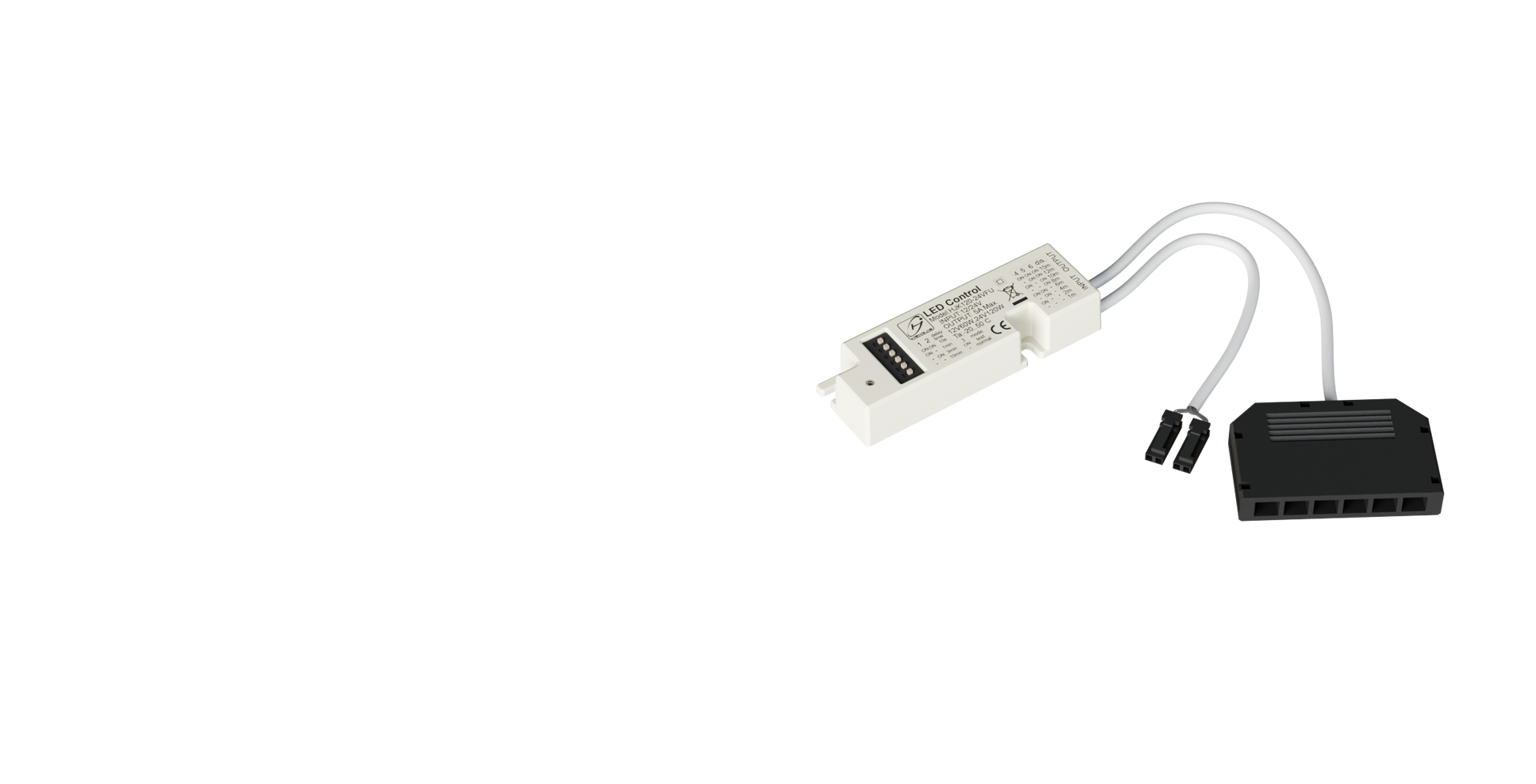

MICROWAVE SENSOR CONTROLLER

• Microwave detection：when people moving in the detection area，light turn on; When human-body leaves the detection range or no motion detected in the detection range，light turn off.

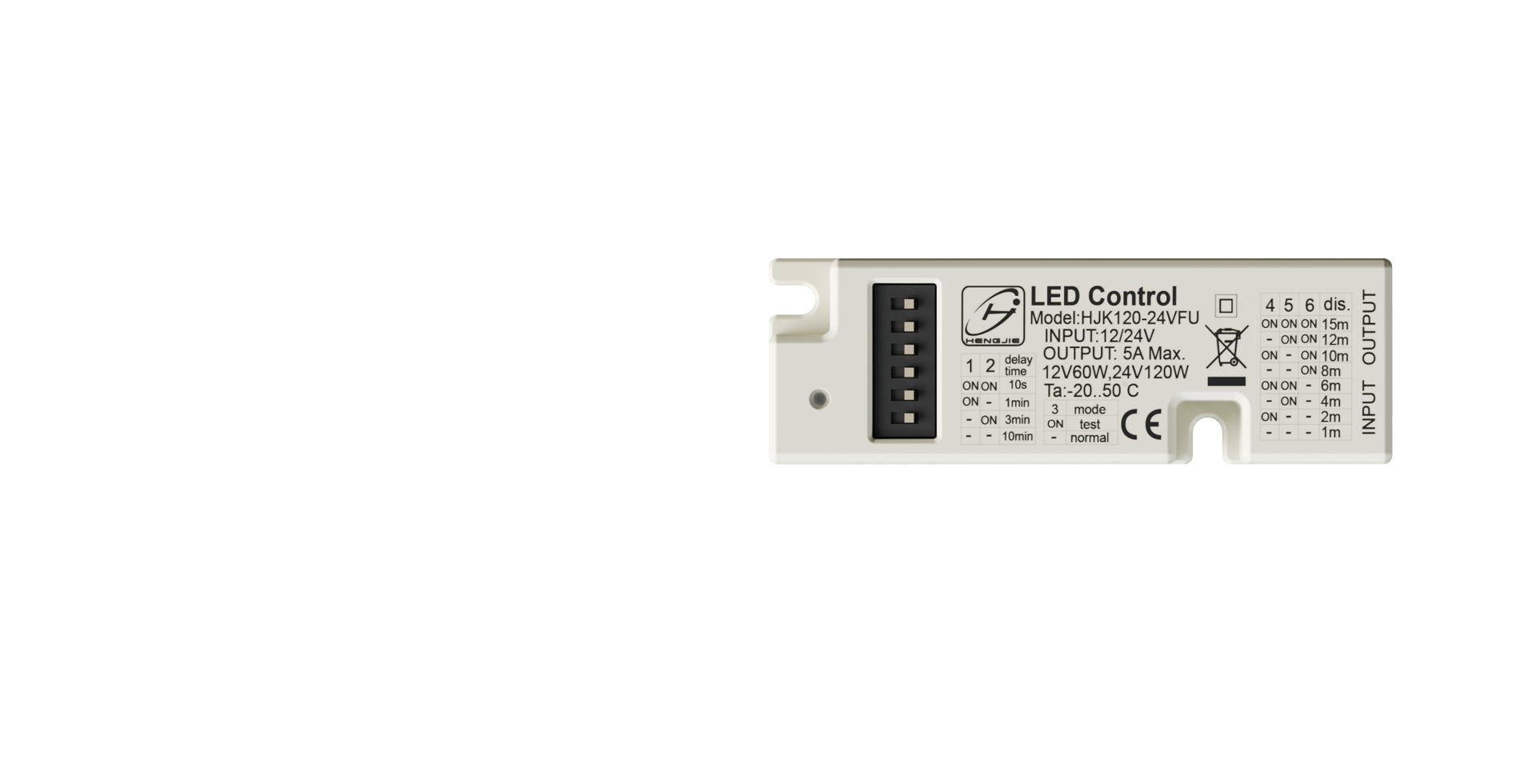

• Detection range can be adjusted by potentiometer

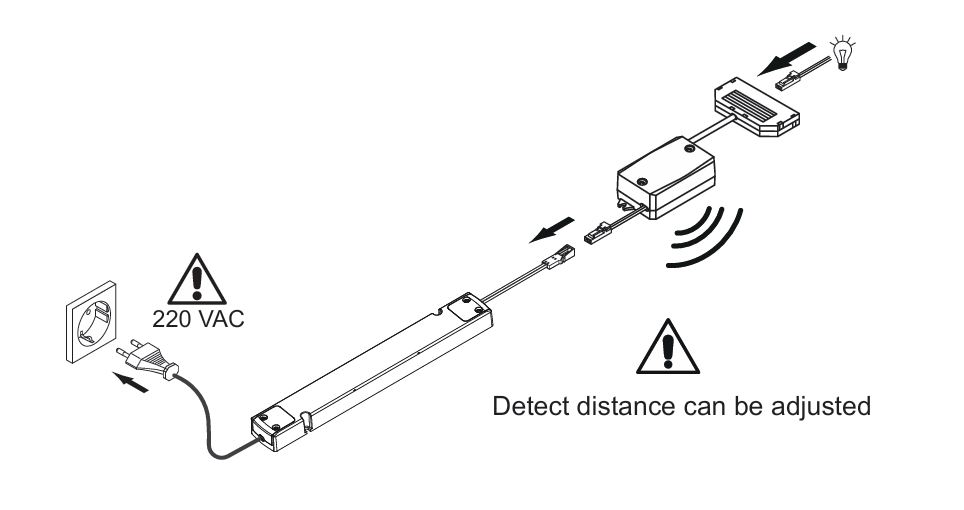

• Terminal block for quick connection
• LED load power：12V:Max.60W 24V:Max.120W
• 5-year warranty

0104

Features

Safety According to EN 61347-1, EN61347-2-11 and EN61058-1
EMC According to EN 301489-1/3
RF According to EN 300440
Side sensing, suitable for top and low cabinet applications.
Used for integral cloakroom, cabinet, study, etc.
5-year warranty

Specifications

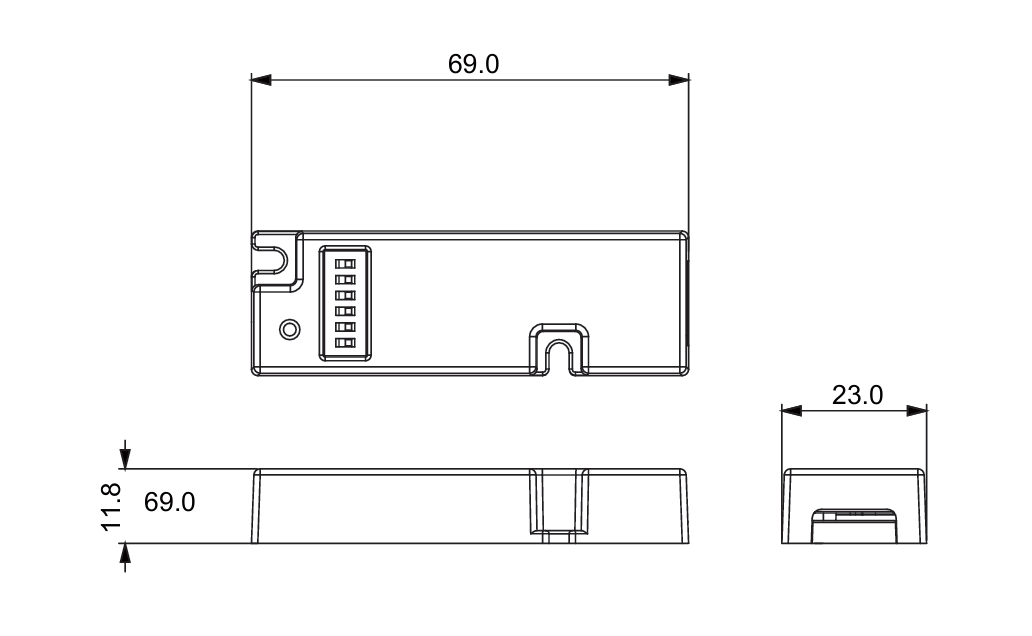

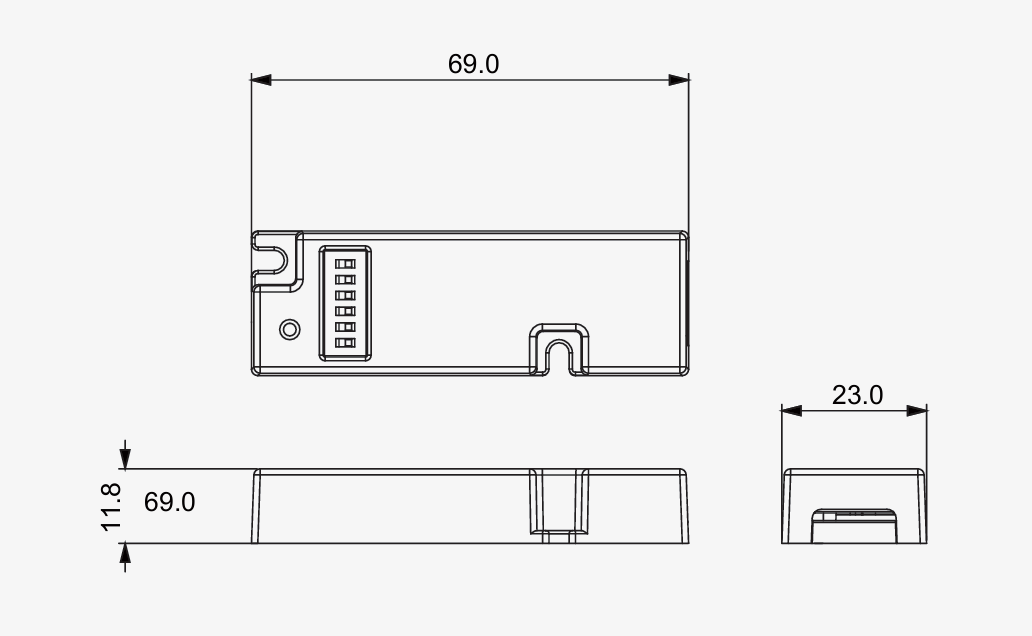

Item code	Rated input	Power	Rated Current	Angle	Detection Range	Operating Frequency	ta	tc	Size (L×W×H)	Approval
HJK120-24VFU	12/24 VDC	60/120W	5A	-	1-15m	5.8G	-20…+50°C	60°C	69×23×12	CE
