ASY-LED POLARIZED LIGHT

ASY-LED POLARIZED LIGHT

ASY-LED POLARIZED LIGHT

ASY-LED POLARIZED LIGHT

ASY-LED POLARIZED LIGHT

The ultimate linear LED for high-end displays, delivering seamless, museum-quality light in an 8mm profile. Combines invisible light diffusion (CRI>90) with tool-free magnetic installation to elevate retail, galleries, and architecture.

0104

Features

Anti glare design.
Optic design(extrusion) for uniform light distribution
Add and remove LED spot with lock system.
Asymetrical lenses to shift more light to one side
Fit for sweep goods on display in shopping area

Specifications

Item	Rated Input	CCT	Power	Efficiency	RA	IP	Beam angle	Length
HJL86-510L-01	24V DC	2700–6500K	1.6 W	90 lm/W (@4000K)	>80	20	65°	MAX.1200mm
HJL86-510L-02	24V DC	2700–6500K	1.6 W	88 lm/W (@6500K)	>80	20	75°	MAX.1200mm

* Other lengths available

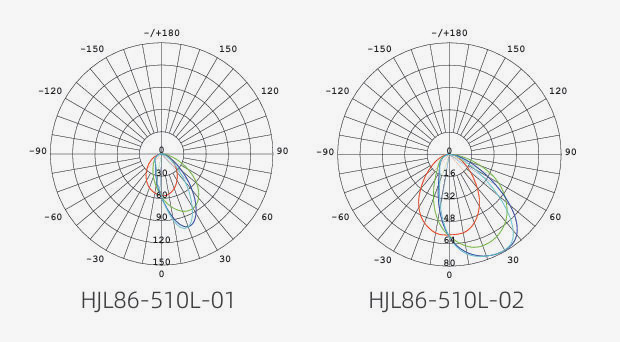

Luminous Intensity

Luminous Intensity

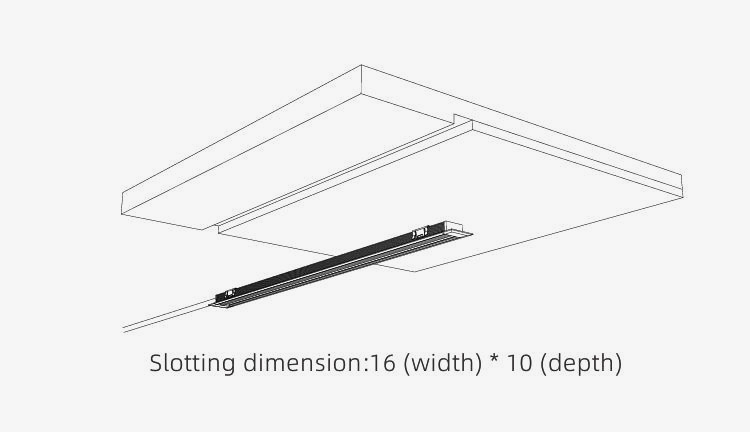

Installatiion

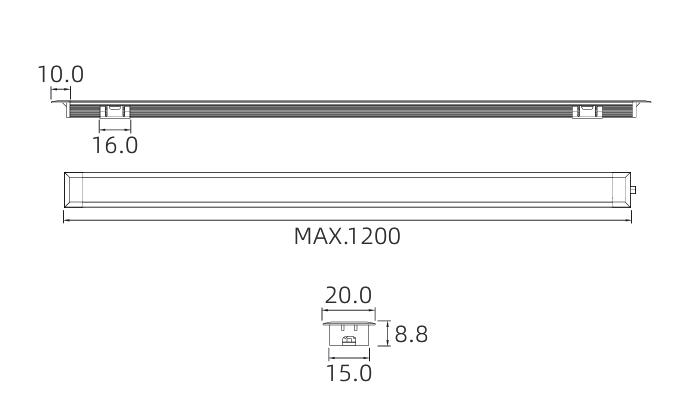

Dimensions

Luminous Intensity

Downloads

Application Scenarios

Wardrobe Lighting

Wardrobe Lighting

From the very first beam of light upon opening the cabinet door, we redefine your storage and dressing experience.

Wine Cabinet Lighting

Wine Cabinet Lighting

Cast the perfect light on your prized wine collection. Savoring wine is also savoring life.

Kitchen Lighting

Kitchen Lighting

Let every cooking moment in the kitchen be bathed in calm, efficient, and pleasant light.

Supermarket & Retail Shelf Lighting Solution

Supermarket & Retail Shelf Lighting Solution

Jewelry Display Lighting

Jewelry Display Lighting

Beauty Retai Lighting

Beauty Retai Lighting

Soft, accurate lighting that highlights textures and creates a premium storage environment.
