GLOWTAG
Bent light guide plate splits light in two directions:
front illumination for semi-transparent labels and backlighting through a frosted cover for shelf products.
0103
Features
-
Advanced PVC+PMMA+AL6063 composite resists yellowing and improves heat dissipation. -
Easy to install, high transparency, customizable, with high efficacy(105 lm/W). -

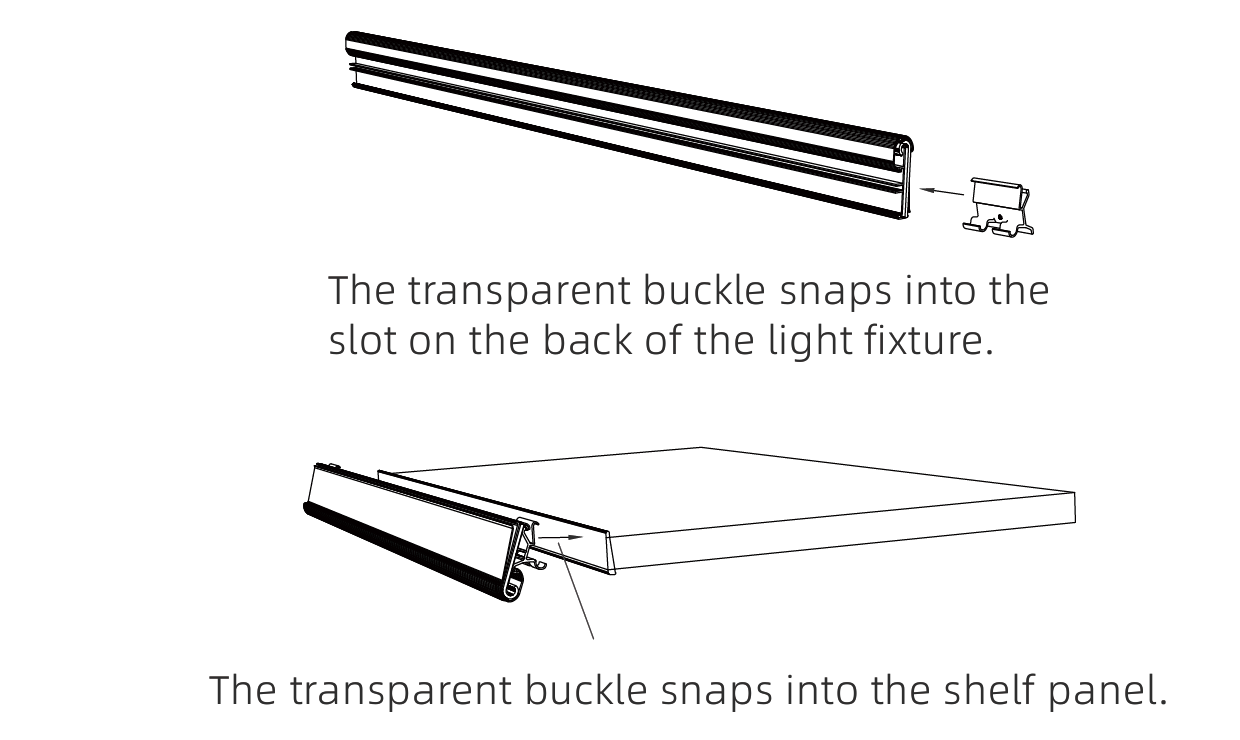

Compatible with plug-in or twist-on rail power systems for easy installation.
Specifications
|
Item |
Rated Input |
CCT |
Power |
Efficiency |
RA |
IP |

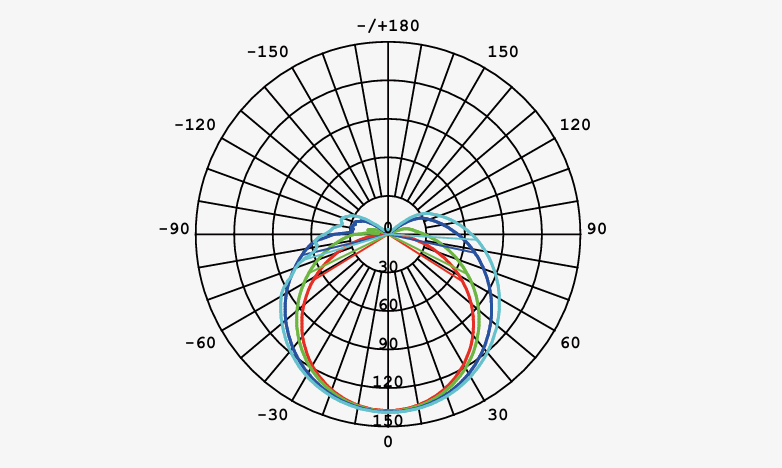

Beam angle |

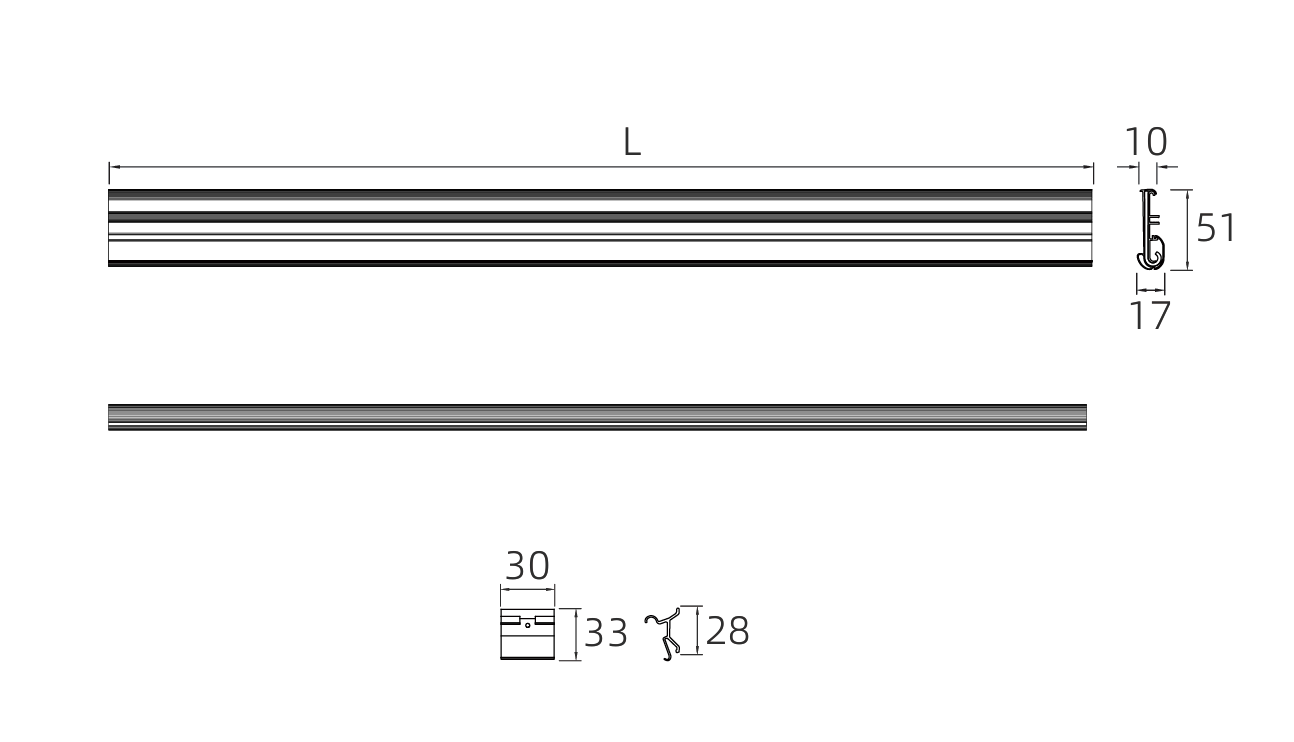

Length |
|
HJL26-001L-01 |
24V DC |
2700K~6500K |
8.0 W |
Front:22 lm/WBack:105 lm/W(@4000K) |
>80 |
20 |
Front:140°Back:125° |
1000mm |
* Other lengths available
