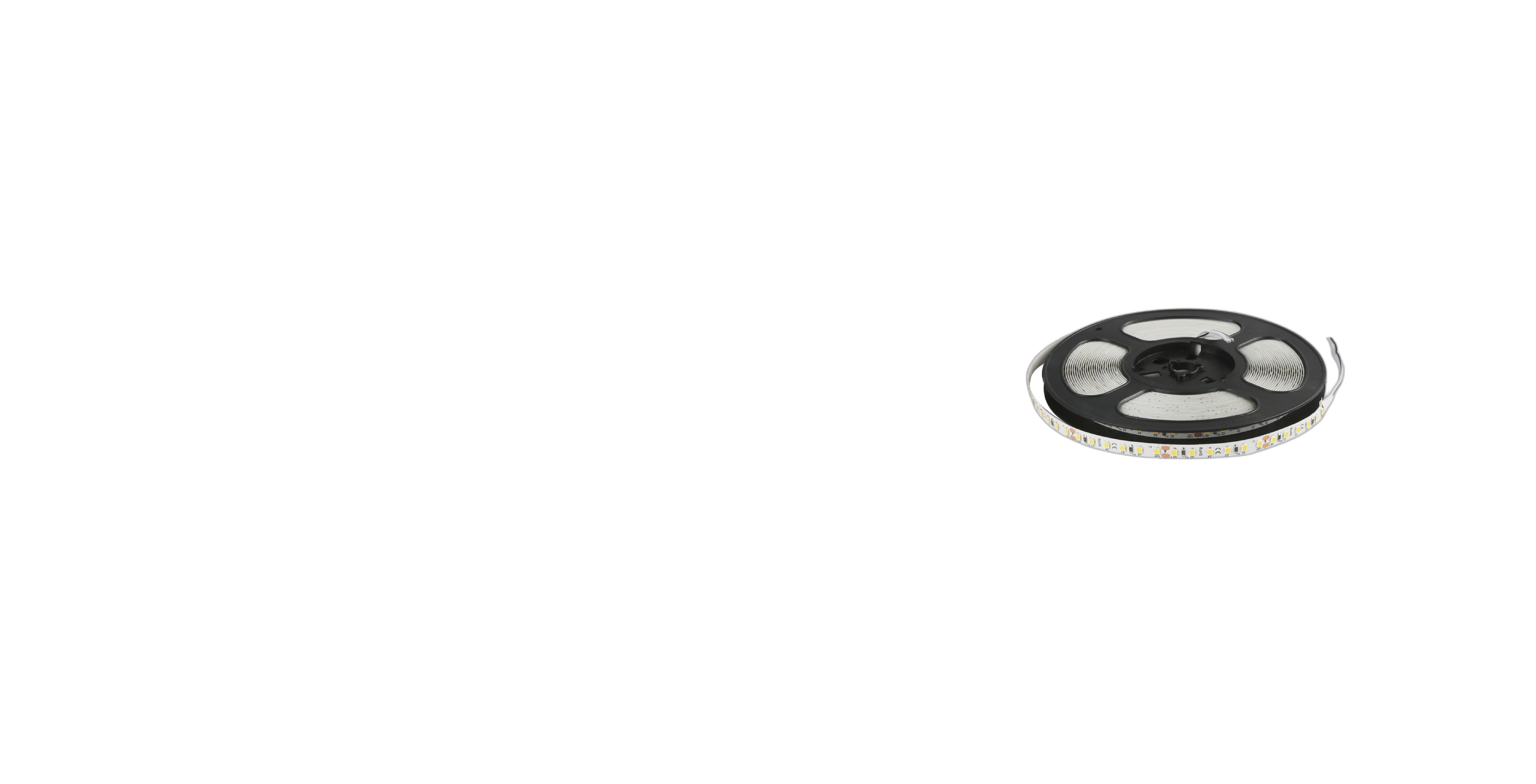

LED STRIP
• Operating voltage: 12/24V DC.
• Beam angle: 120 degree.
• Driver type: constant voltage.
• Operating temperature(range): -20℃ to 60 ℃.
• CRI>90.
• IP rating: IP20.
• Variable cut points.
0101
Features
-
Operating voltage: 12/24V DC. -
Beam angle: 120 degree. -
CRI>90. -
IP rating: IP20. -
Variable cut points.
Specifications
|
Item |
Rated input |
CCT |
Power |
Efficiency(@4000K) |
RA |
Width |
Length of cut |
Leds/m |
|
* 1 pce led cuttable, single color |
||||||||
|
HJF24-16806-3(18V) |
24VDC |
2700/6500K |
7W/M |
95lm/w |
90 |
6mm |
6mm |
168pcs |
|
HJF12-16806-8(9V) |
12VDC |
2700/6500K |
7W/M |
95lm/w |
90 |
6mm |
6mm |
168pcs |
|
HJF24-16804-3(18V) |
24VDC |
2700/6500K |
7W/M |
95lm/w |
90 |
4mm |
6mm |
168pcs |
|
* 1 unit led cuttable, CCT |
||||||||
|
HJF24-33606-8WC(18V) |
24VDC |
2700~6500K |
7W/M |
95lm/w |
90 |
6mm |
6mm |
168*2pcs |
|
HJF12-33606-8WC(9v) |
12VDC |
2700~6500K |
7W/M |
95lm/w |
90 |
6mm |
6mm |
168*2pcs |
|
* 6 pcs led cuttable, ECO, single color |
||||||||
|
HJF24-12008-1 |
24VDC |
2700/6500K |
8W/M |
95lm/w |
90 |
8mm |
50mm |
120pcs |
|
HJF24-6008-1 |
24VDC |
2700/6500K |
8W/M |
95lm/w |
90 |
8mm |
100mm |
60pcs |
* Other lengths available
