INTELLIGENT POWER SUPPLY-3040W

Optional control modules to support 2.4G, Bluetooth, Zigbee and other control functions. Comprehensive protection functions with automatic recovery (Undervoltage Protection, Surge/Lightning Protection, Overload Protection, Over Temperature Protection (OTP), Short Circuit Protection (SCP)). Ultra-thin design with a thickness of 17mm.

0104

Features

Optional control modules to support 2.4G, Bluetooth, Zigbee and other control functions
Comprehensive protection functions with automatic recovery (Undervoltage Protection, Surge/Lightning Protection, Overload Protection, Over Temperature Protection (OTP), Short Circuit Protection (SCP))

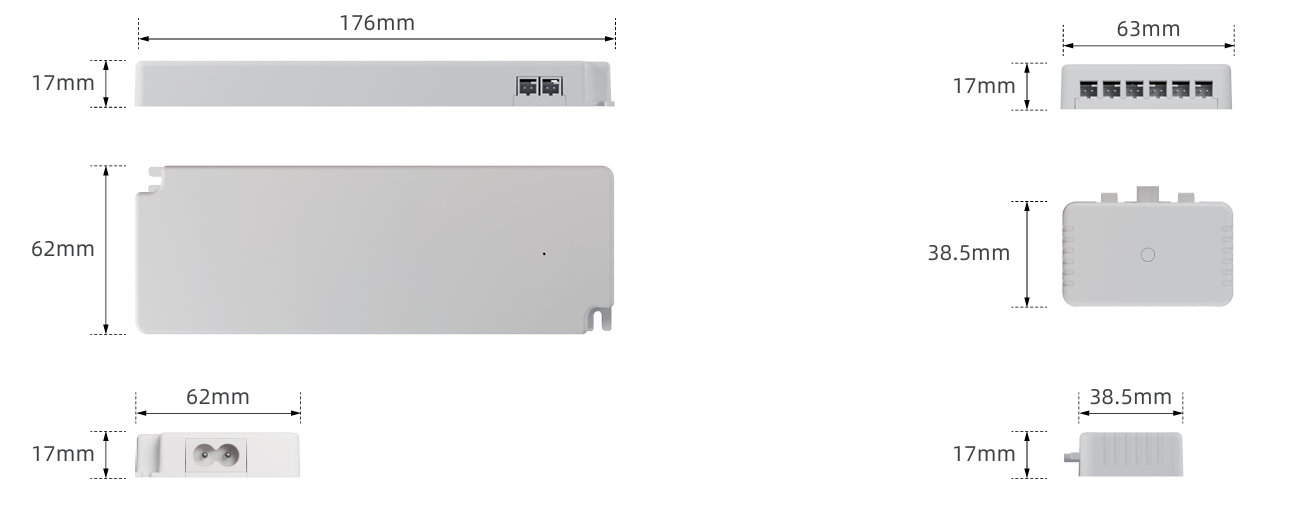

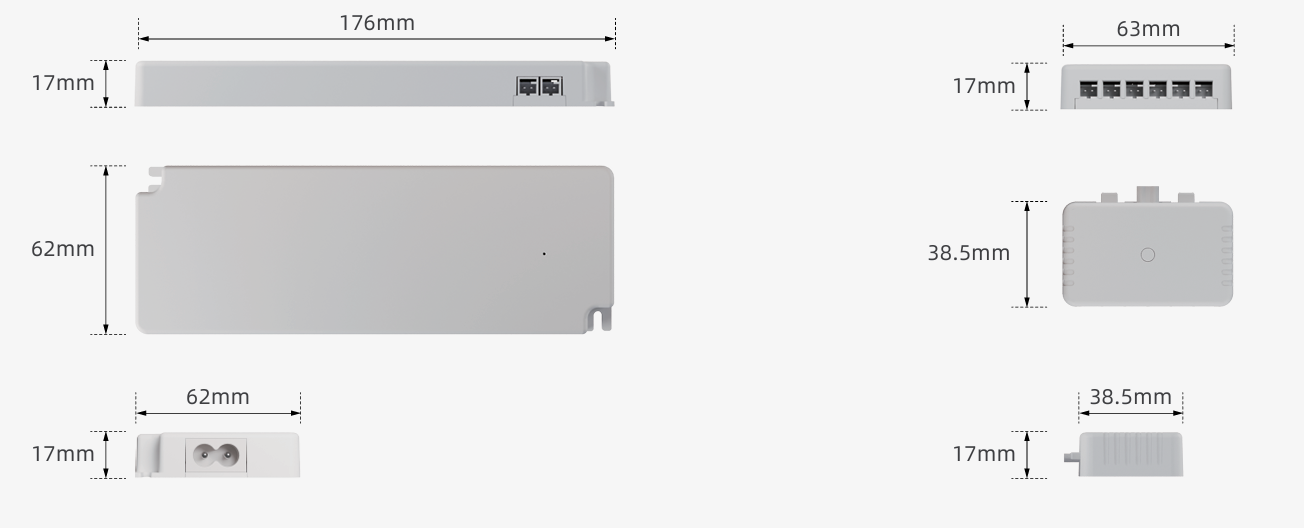

Ultra-thin design with a thickness of 17mm

Specifications

Item	Input Voltage Range	Input Frequency	Input Power	Input Current	Output Voltage	Output Current Range	Ta	Tc
HJA30-24VLM	220–240Vac	50/60Hz	30W	0.18A max	DC24V	0–1250mA	-20…+45℃	85℃
HJA40-24VLM	220–240Vac	50/60Hz	40W	0.22A max	DC24V	0–1670mA	-20…+45℃	85℃
