INTELLIGENT POWER SUPPLY-6075100120150W

Optional control modules to support 2.4G, Bluetooth, Zigbee and other control functions. Comprehensive protection functions with automatic recovery (Undervoltage Protection, Surge/Lightning Protection, Overload Protection, Over Temperature Protection (OTP), Short Circuit Protection (SCP)). Ultra-thin design with a thickness of 17mm.

0104

Features

Optional control modules to support 2.4G, Bluetooth, Zigbee and other control functions
Comprehensive protection functions with automatic recovery (Undervoltage Protection, Surge/Lightning Protection, Overload Protection, Over Temperature Protection (OTP), Short Circuit Protection (SCP))

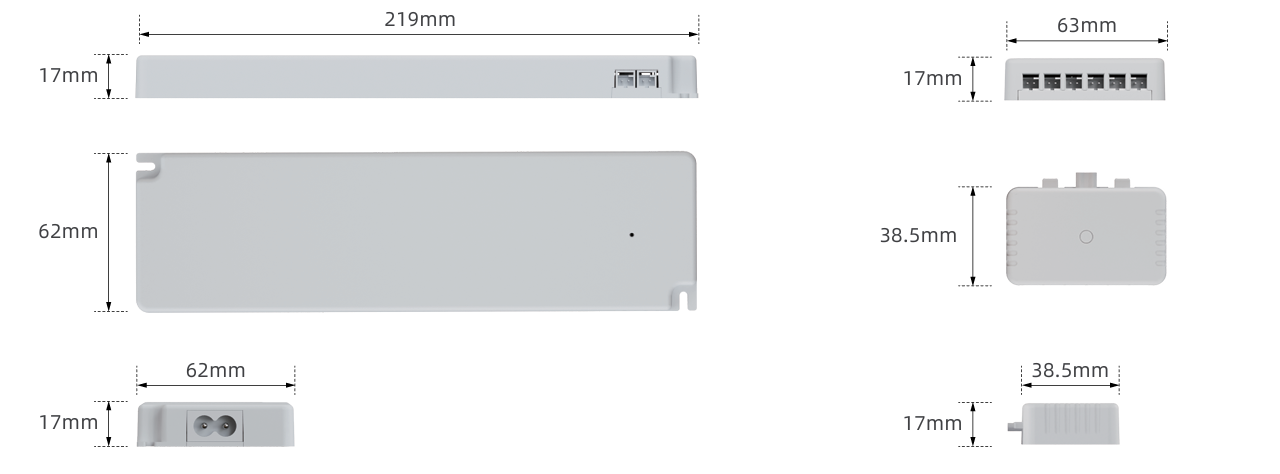

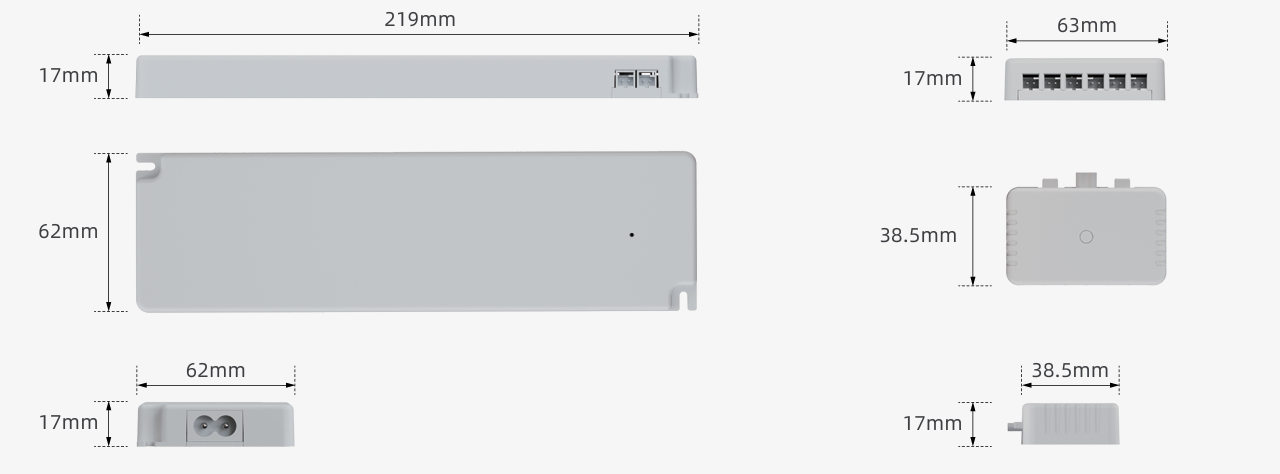

Ultra-thin design with a thickness of 17mm

Specifications

Item	Input Voltage Range	Input Frequency	Input Power	Input Current	Output Voltage	Output Current Range	Ta	Tc
HJA60-24VLM	220–240Vac	50/60Hz	60W	0.32A max	DC24V	0–2500mA	-20…+45℃	90℃
HJA75-24VLM	220–240Vac	50/60Hz	75W	0.40A max	DC24V	0–3125mA	-20…+45℃	90℃
HJA100-24VLM	220–240Vac	50/60Hz	100W	0.53A max	DC24V	0–4170mA	-20…+45℃	90℃
HJA120-24VLM	220–240Vac	50/60Hz	120W	0.65A max	DC24V	0–5000mA	-20…+45℃	80℃
HJA150-24VLM	220–240Vac	50/60Hz	150W	0.76A max	DC24V	0–6250mA	-20…+40℃	80℃
